双桶桶夹

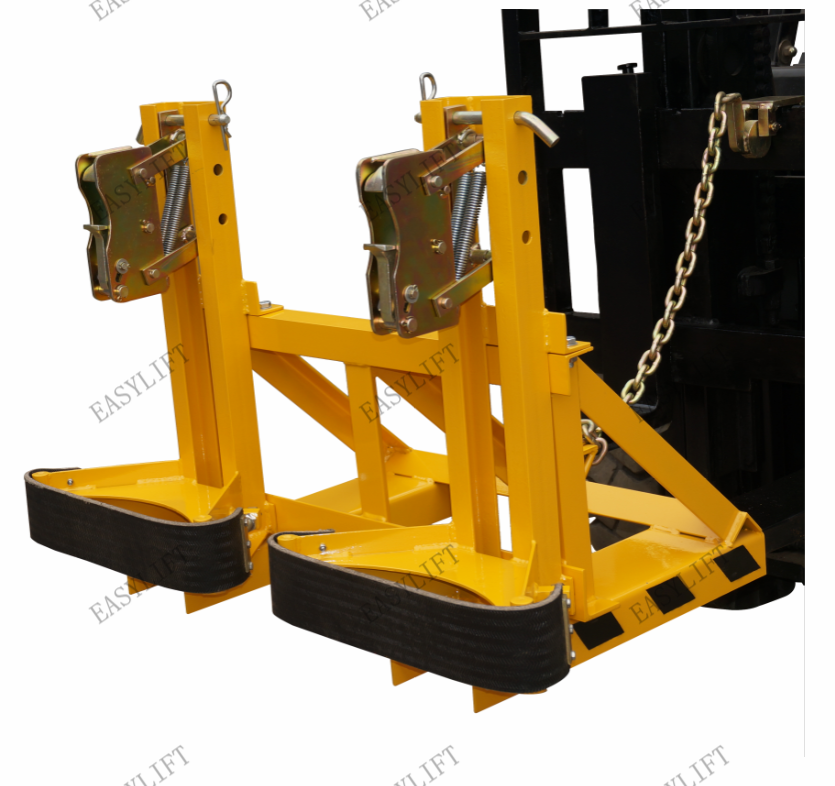

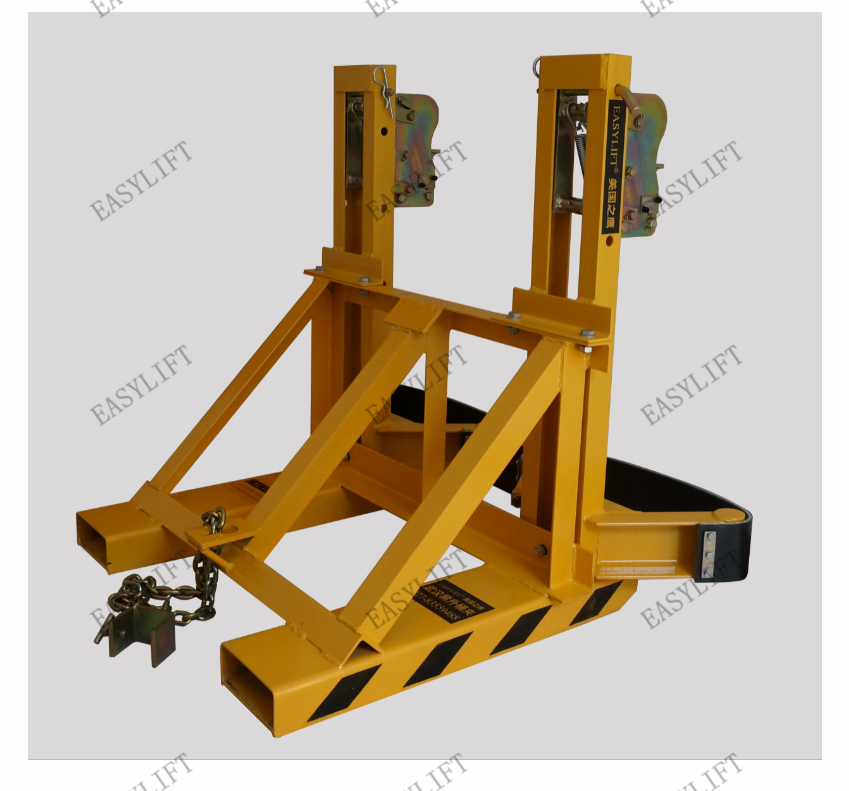

双桶重型桶夹（型号：2SE-S）

产品名称(Description)：双桶重型桶夹
产品型号(Model)：2SE-S
鹰嘴类型(Eagle-Grip)：单鹰嘴 SE-S
产品自重(Weight)： 100 kg
铁桶单重(Steel Drum)：360 kg
塑料桶单重(Plastic Drum)：200 kg
外形尺寸(Dimensions)(LxWxH)：840×1080×965 mm
叉车吨位(Forklift)： 1.5-5T

在线咨询

产品详情

采用美国技术生产，技术领先
鹰嘴采用美国超强特殊材料制作，经久耐用

单鹰嘴鹰头，适应各种直径的圆桶(有桶边、直上直下型)

定制单鹰嘴，可适应鸡蛋型、高桶盖、开口、塑料圆桶(德国毛瑟桶)(有桶边)

配防静电皮带BC，对圆桶提供很好的支撑和保护，防止对桶壁造成刮伤、碰瘪和刺破。

与标准3米升高叉车配合，可在地面上，对卡车进行2层桶的堆码

采用全自由门架叉车，在集装箱等狭小环境内进行2个桶高的堆码(普通叉车只能堆码1层桶)

桶夹操作要领：
倾斜叉车门架，很重要！！！

在抓桶之前，需要将叉车门架前倾，这是因为如果货叉和门架后倾，皮带会首先与桶接触而使鹰头不能接触到桶边，不能完成抓桶动作。

在抓取桶以后，请将门架向后倾斜，使桶处于垂直状态，然后开动叉车将桶安全地运送到需要的地方。

在释放油桶时，也需要将门架适当前倾。

Leading technology and patents from USA

Long life Eagle-Grip jaws made from USA special alloy material

Single Eagle-Grip head, to handle drums in different diameters (with straight wall and top rings).

Custom-made,single Eagle-Grip heads, to handle egg-shaped, open-top plastic drums (with top rings)（German Mauser-style）

Anti-static cushion Belt Cradle （BC）, for better support and protection to drums.

With a 3M-lift forklift truck,the attachment can do two stacks of drums on trucks from the floor.

With a free-mast lift truck, the attachment can do two stacks of drums in ISO containers. (One stage-mast forklift can do just one stack only.)

Key Notes: Tilting the carriage of the forklift forward and back is very important to operate the drum handler.

In order to pick up drums, just tilt the carriage of the lift-truck slightly forward, so that the clamping heads can make contact on the drums.

After the drums are picked up, the drums can then be tilted back in straight position,for transport.

In order to release the drums, the operator should again tilt the carriage of the lift-truck slightly forward.
